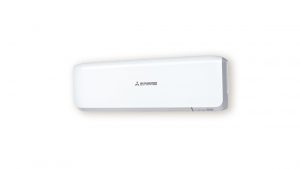

SRK20ZSA-W / DXK06ZSA-W, 2.0kW
With a high star energy ratings and a range of convenient feature and functions, the 2.0kW Avanti® split system is ideal for smaller spaces.
Key features
- Modern and stylish design
- 3D Auto airflow for effective and even air distribution
- Allergen clear system to deliver odour free and allergen free air
- Wide range of timer and scheduling functions
- Optional Wi-Fi control with Wi-Fi adaptor
| Indoor | SRK20ZSA-W | ||
| Outdoor | SRC20ZSA-W | ||
| Power supply | 1 Phase 220~240V 50Hz | ||
| CapacityØ | Cooling T1 | kW | 2.0 (0.9~3.0) |
| Heating H1 | 2.7 (1.0 ~4.2) | ||
| InputØ | Cooling T1 | kW | 0.41 (0.18~0.81) |
| Heating H1 | 0.56 (0.20~1.12) | ||
| Max running current | A | 9 | |
| Energy label | Cooling T1 | Stars | 5 |
| Heating H1 | 5 | ||
| EER | Cooling T1 | 4.88 | |
| COP | Heating H1 | 4.82 | |
| Sound power level (JIS C9612) | Cooling(Outdoor) | dB(A) | 56 |
| Heating(Outdoor) | 57 | ||
| Sound pressure level (JIS C9612)Ø | Cooling(Indoor) | dB(A) | 35-27-22-19 |
| Heating(Indoor) | 39-30-24-19 | ||
| Silent mode sound pressure level | Cooling(Outdoor) | dB(A) | 41 |
| Heating(Outdoor) | 42 | ||
| Airflow | Cooling(Indoor) | l/s | 165-127-93-83 |
| Heating(Indoor) | 190-142-108-93 | ||
| External dimensions (HXWXD) | Indoor | mm | 290x870x230 |
| Outdoor | 540x780(+62)x290 | ||
| Net weight | Indoor | kg | 9.5 |
| Outdoor | 33 | ||
| Refrigerant piping | Liquid line | mm | Ø6.35 |
| Gas line | Ø9.52 | ||
| Connection method | Flare connection | ||
| Refrigerant R32 | Quantity | kg | 0.58 |
| Pre charged to pipe length | m | 15 | |
| Clean filter | Allergen Clear & Photocatalytic Washable Deodorizing Filter | ||
